Power Backup System Using Supercapacitors

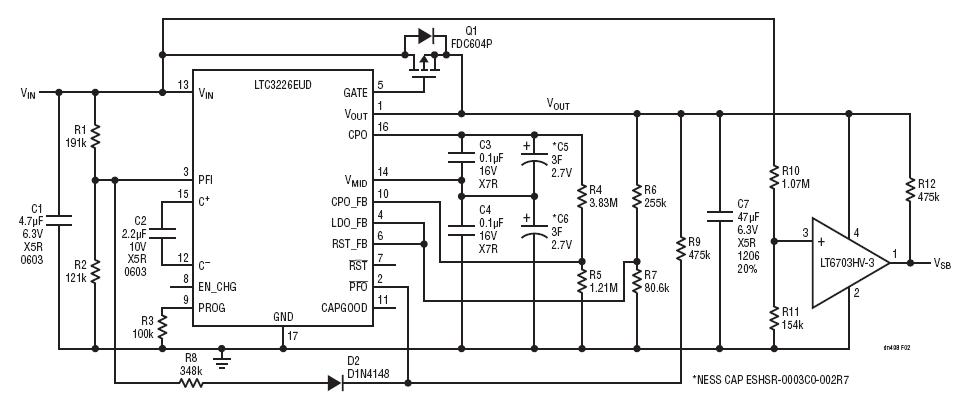

This circuit shows a power holdup system that incorporates a supercapacitor stack with the capacity to provide standby power of 165mW for about 45 seconds in the absence of battery power. An LDO converts the output of the supercapacitor stack to a constant voltage supply during backup mode.
