48V, 2A Hot Swap Controller





The LT4256-1 are high voltage Hot Swap controllers that allow a board to be safely inserted and removed from a live backplane. An internal driver drives an external N-channel MOSFET switch to control supply voltages ranging from 10.8V to 80V. The LT4256-1 latches off until the UV pin is cycled low.

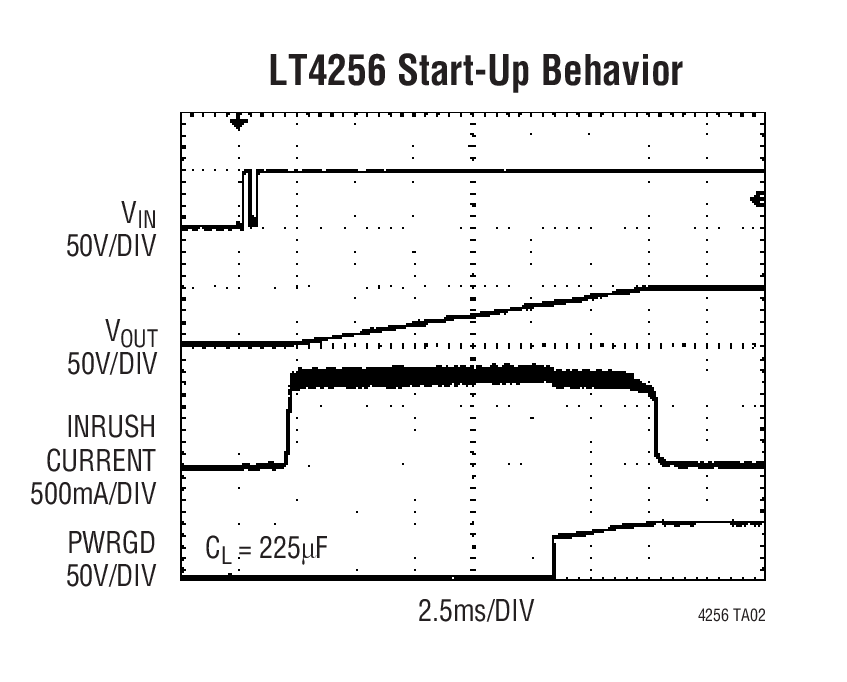

LT4256 Start-Up Behavior
