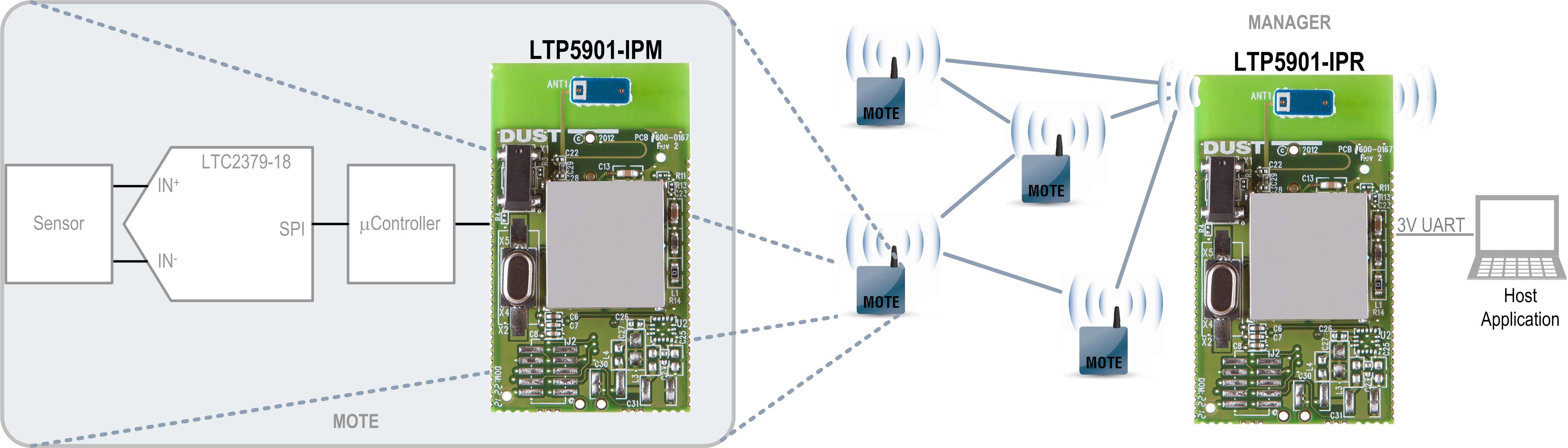

These design files include schematics, BOM, layout files and assembly drawings for the LTP5901 Castellated PCB module, which is used in:
- LTP5901-IPM SmartMesh IP Mote Module
- LTP5901-IPR SmartMesh IP Embedded Manager
- LTP5901-WHM SmartMesh WirelessHART Mote Module
The LTP5901 PCB design incorporates an LTC5800 QFN product (LTC5800-IPM, LTC5800-IPR, or LTC5800-WHM), crystals, supply filtering, plus a chip antenna, and features castellated, surface-mount connections.
