ADI Programmable Logic Controller (PLC) Solutions

Overview

water-page-pic1-en

Comprised of power supplies, CPUs, and multiple analog and digital I/O modules, a PLC system controls, actuates, and monitors complex machine variables. The PLC is designed for multiple inputs and outputs arrangement, extended temperature ranges, immunity to electrical noise, and resistance to vibration and impact.

A PLC system comprises power supplies, control and communication modules, and a variety of analog-input, analog-output, digital-input, and digital-output modules.

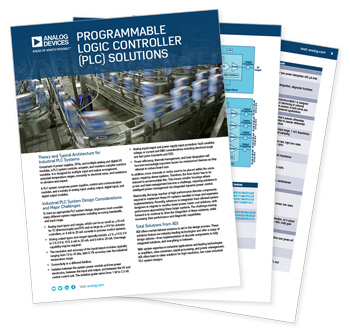

Download


To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.

Free Download Now

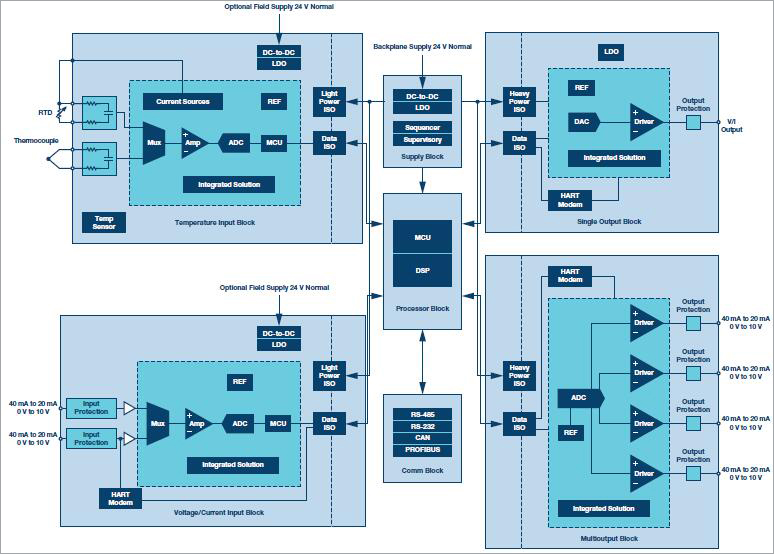

System Block Diagram


plc-solution-2011-pic2-update

Product


Product Type Analog Input Devices Analog Output Devices Isolators
Model
ADCs
AD779x/AD7689/
AD7177-2/AD7606/
AD7606-4/AD7606-6/
AD7176-2/AD7173-8/
AD7988-1/AD7988-5
ADAS3022/AD7124-4
Amplifiers
ADA4096-2/ADA4096-4/
AD8422/AD8226/
AD8275/AD8276/AD8475
Muxes
ADG5208F/ADG5209F/
ADG5408/ADG5412F/
ADG508F/ADG509F
Integrated Solutions
ADuCM360/ADuCM361/
ADuC7060/ADuC7061
DACs
AD5683R/AD5660/
AD5686/AD5684R/
AD5689R/AD5668/
AD5628/AD5629R/
AD5761/AD5721
Voltage/Current Drivers
AD5750-2/AD5749/
AD5748/AD5750
Integrated Solutions
AD5420/AD5410/
AD5422/AD5412/
AD5755/AD5735/
AD5757/AD5737
HART
AD5700/AD5700-1
Light Power Isolators
ADuM540x/ADuM521x/
ADuM524x/ADuM5000
Heavy Power Isolators
ADuM347x/ADuM3190
Data Isolators
ADuM140x/ADuM144x/
ADuM128x/ADuM3481
Product Type Other Devices 5. 基准电压源
Model
Power Supplies
ADP2441/ADP2442/
ADP1720/ADP5070/
ADP5073/ADP5074/
ADP7182/ADP1621
Communications Interfaces
ADM2587E/ADM2482E/
ADM2490E/ADM305x/
ADM325xE/ADM3101E


Other


For More Industry PLC Applications and Products Information, Please Visit: www.analog.com/en/processcontrol-plc

For the Complete PLC Demo System, Please Visit: www.analog.com/en/PLC_DEMO
