- Test Results of setup of adc drivers and AD7688
Test Results of setup of adc drivers and AD7688

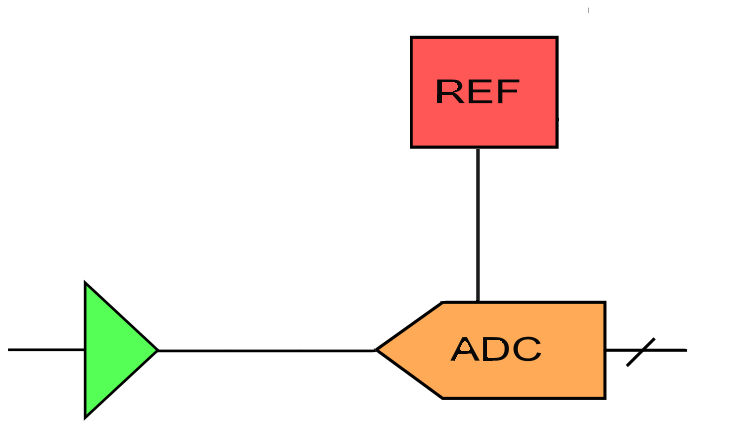

All Drivers

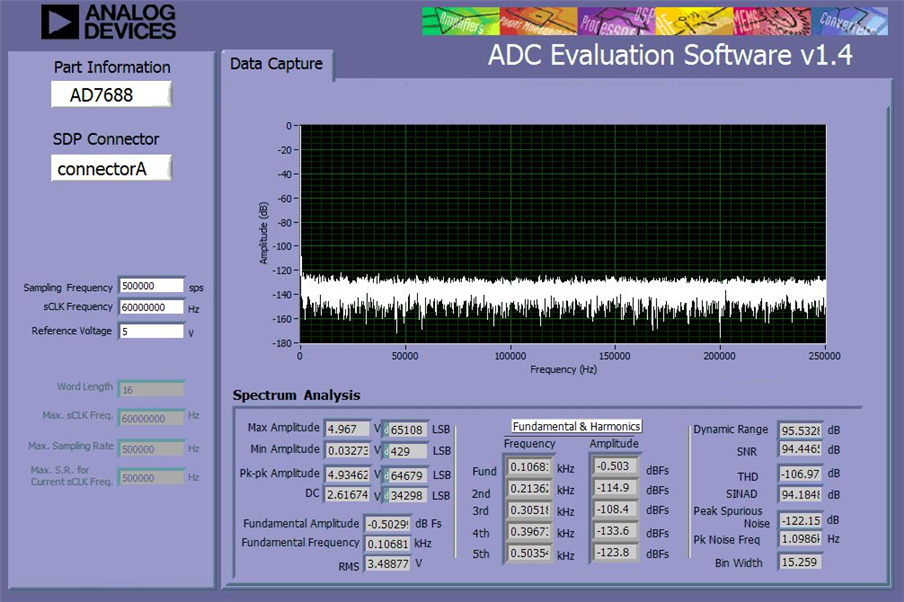

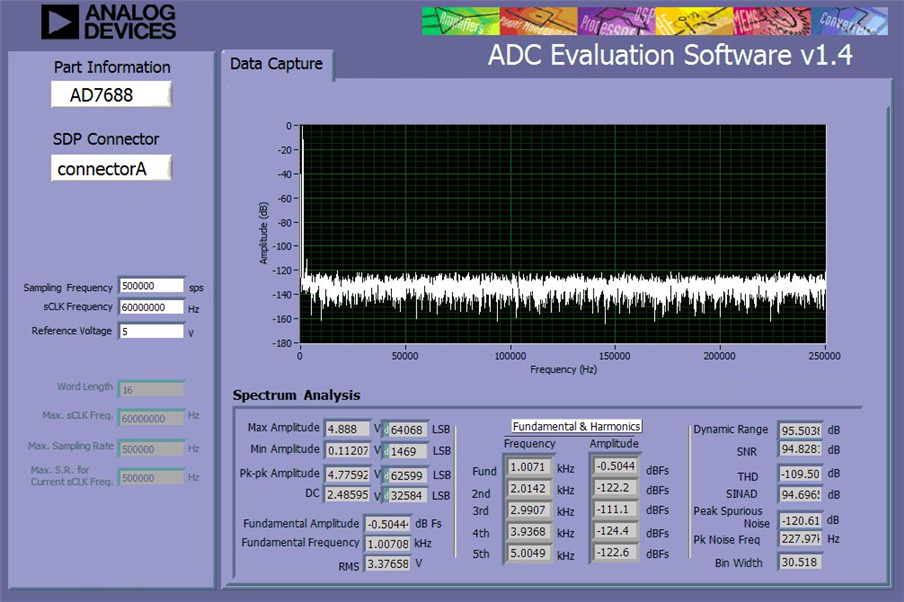

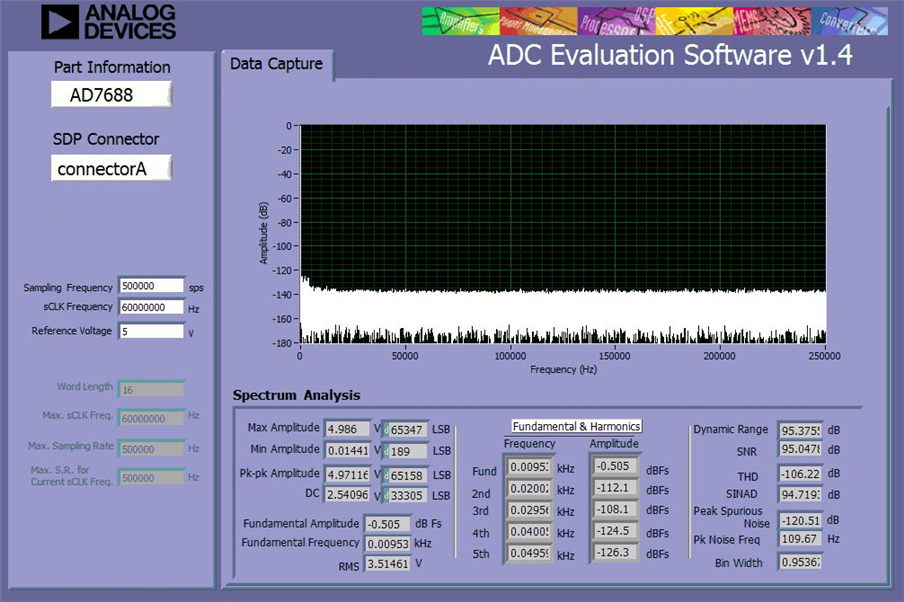

ADA4627-1 driving AD7688
Add to Signal Chain Designer Explore in Signal Chain DesignerCircuit Setup for ADA4627-1 to drive AD7688
Setup Description

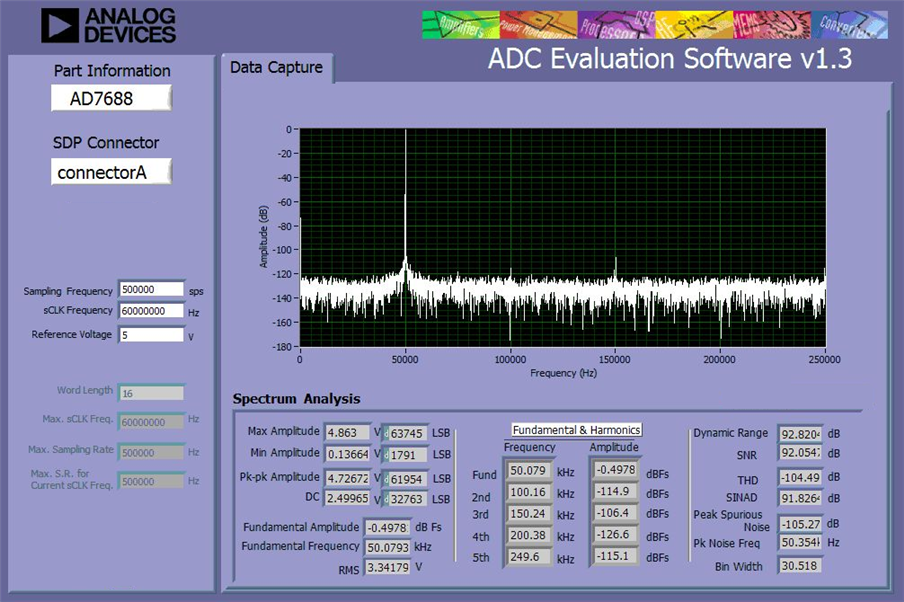

The test setup for the ADC and ADC input driver amplifiers consists of the EVAL-AD7688SDZ ADC Evaluation board connected to the EVAL-SDP-CB1Z system demonstration platform (SDP) board. An Audio Precision model AP2722, audio analyzer with a low pass output filter was used to generate the ADC driver input signals. Amplifiers to be tested were installed in the Evaluation board and configured as shown in the individual ADC/amplifier driver schematics. The SDP board was used to capture and send the ADC output data to the PC via the USB connection. Please refer to the individual schematics, and corresponding data graphs for additional information regarding the evaluation board configuration, power supplies, signal frequencies, signal amplitudes and testing details.
Parts Used
| Part # | Category | Description |
|---|---|---|
| ADR435 | Reference | Ultralow Noise XFET® 5.0V Voltage Reference w/Current Sink and Source Capability |
| AD8031 | Reference Buffer | 2.7 V, 800 µA, 80 Mhz Rail-to-Rail I/O Single Amplifier |
| ADA4627-1 | Amplifier | 36 V, 19 MHz, Low Noise, Low Bias Current, JFET Op Amp |
| AD7688 | SAR ADC | 500 kSPS 16- BIT Differential PulSAR® A/D Converter in µSOIC/QFN |
Hardware
| Part # | Category | Description |
|---|---|---|
| EVAL-AD7688SDZ | Evaluation Board | AD7688 Evaluation Board |
| EVAL-SDP-CB1Z | System Demonstration Platform | SDP-B Controller Board |

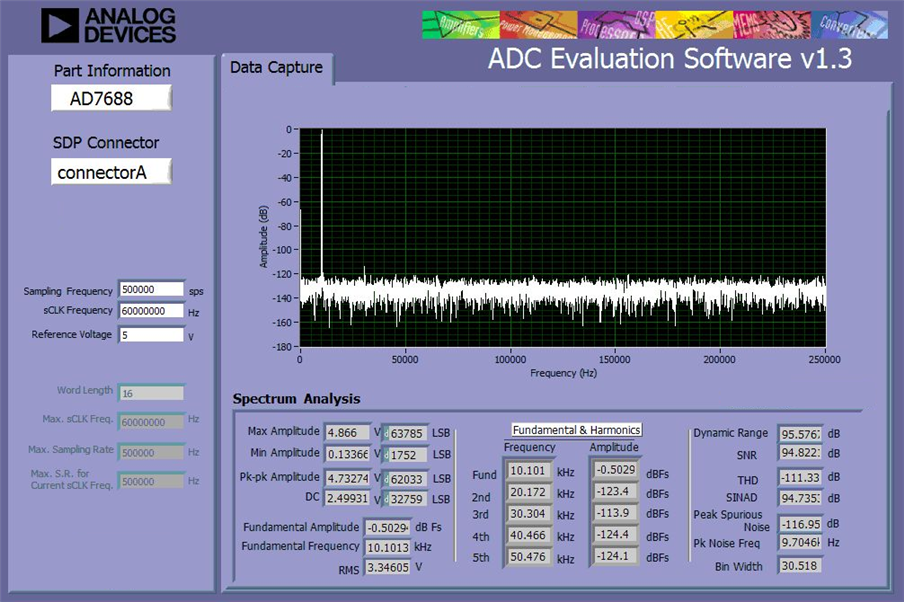

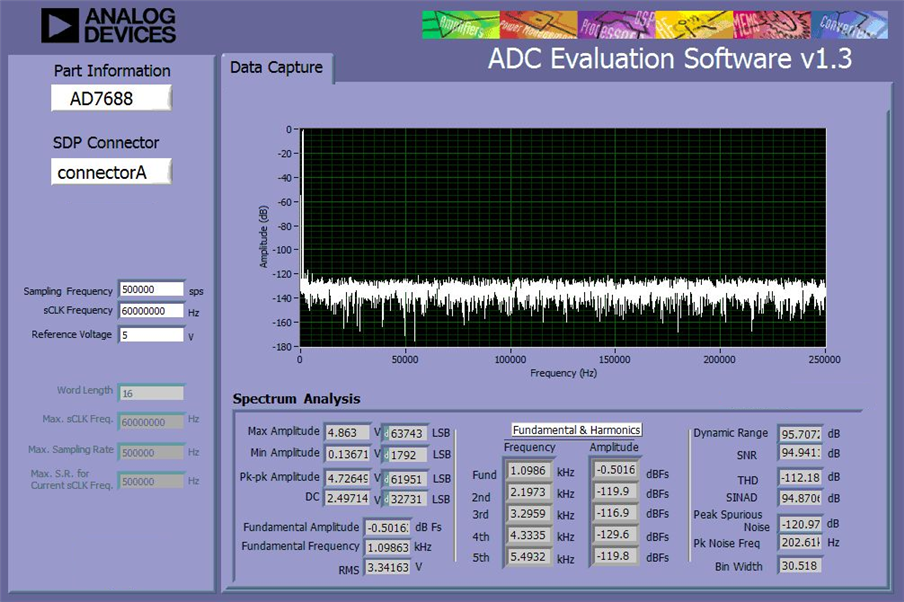

ADA4841-1 driving AD7688
Add to Signal Chain Designer Explore in Signal Chain DesignerCircuit Setup for ADA4841-1 to drive AD7688
Setup Description
The test setup for the ADC and ADC input driver amplifiers consists of the EVAL-AD7688SDZ ADC Evaluation board connected to the EVAL-SDP-CB1Z system demonstration platform (SDP) board. An Audio Precision model AP2722, audio analyzer with a low pass output filter was used to generate the ADC driver input signals. Amplifiers to be tested were installed in the Evaluation board and configured as shown in the individual ADC/amplifier driver schematics. The SDP board was used to capture and send the ADC output data to the PC via the USB connection. Please refer to the individual schematics, and corresponding data graphs for additional information regarding the evaluation board configuration, power supplies, signal frequencies, signal amplitudes and testing details.
Parts Used
| Part # | Category | Description |
|---|---|---|
| ADR435 | Reference | Ultralow Noise XFET® 5.0V Voltage Reference w/Current Sink and Source Capability |
| AD8031 | Reference Buffer | 2.7 V, 800 µA, 80 Mhz Rail-to-Rail I/O Single Amplifier |
| ADA4841-1 | Amplifier | Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier |
| AD7688 | SAR ADC | 500 kSPS 16- BIT Differential PulSAR® A/D Converter in µSOIC/QFN |
Hardware
| Part # | Category | Description |
|---|---|---|
| EVAL-AD7688SDZ | Evaluation Board | AD7688 Evaluation Board |
| EVAL-SDP-CB1Z | System Demonstration Platform | SDP-B Controller Board |

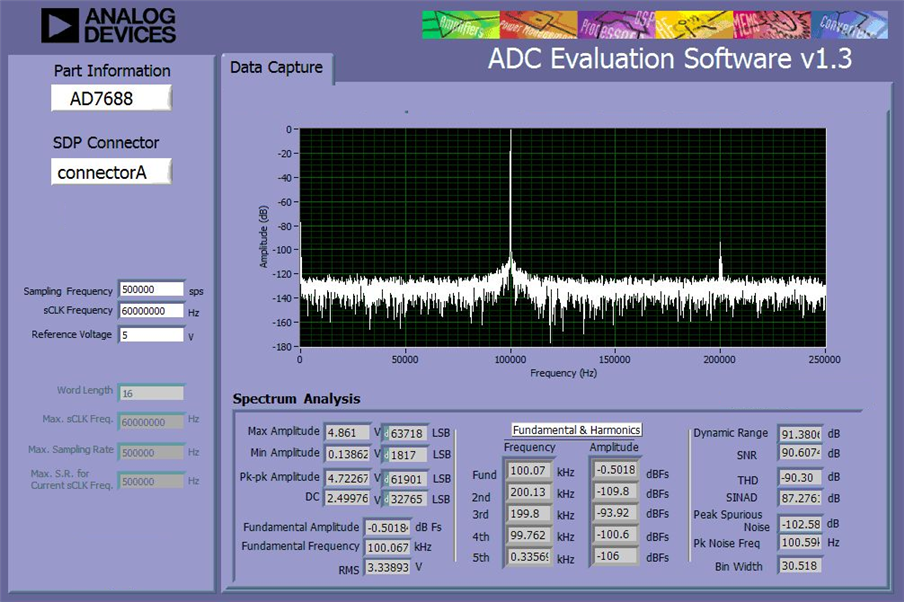

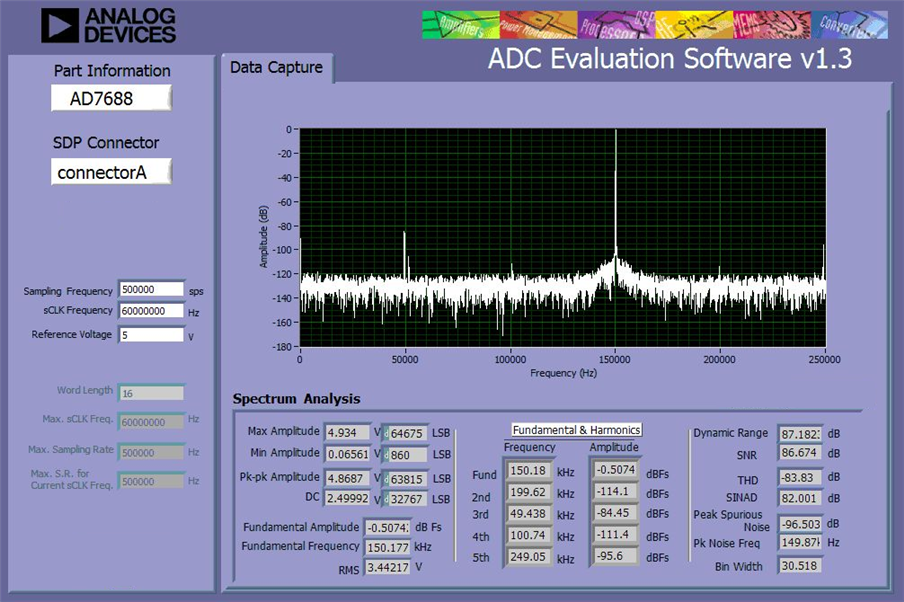

ADA4899-1 driving AD7688
Add to Signal Chain Designer Explore in Signal Chain DesignerCircuit Setup for ADA4899-1 to drive AD7688
Setup Description
The test setup for the ADC and ADC input driver amplifiers consists of the EVAL-AD7688SDZ ADC Evaluation board connected to the EVAL-SDP-CB1Z system demonstration platform (SDP) board. An Audio Precision model AP2722, audio analyzer with a low pass output filter was used to generate the ADC driver input signals. Amplifiers to be tested were installed in the Evaluation board and configured as shown in the individual ADC/amplifier driver schematics. The SDP board was used to capture and send the ADC output data to the PC via the USB connection. Please refer to the individual schematics, and corresponding data graphs for additional information regarding the evaluation board configuration, power supplies, signal frequencies, signal amplitudes and testing details.
Parts Used
| Part # | Category | Description |
|---|---|---|
| ADR435 | Reference | Ultralow Noise XFET® 5.0V Voltage Reference w/Current Sink and Source Capability |
| AD8031 | Reference Buffer | 2.7 V, 800 µA, 80 Mhz Rail-to-Rail I/O Single Amplifier |
| ADA4899-1 | Amplifier | Unity-Gain Stable, Ultralow Distortion, 1 nV/?Hz Voltage Noise, High Speed Op Amp |
| AD7688 | SAR ADC | 500 kSPS 16- BIT Differential PulSAR® A/D Converter in µSOIC/QFN |
Hardware
| Part # | Category | Description |
|---|---|---|
| EVAL-AD7688SDZ | Evaluation Board | AD7688 Evaluation Board |
| EVAL-SDP-CB1Z | System Demonstration Platform | SDP-B Controller Board |
-
